Combine the sensitivity of a coil spring with the tunability of air. Increase comfort and traction without compromising support and control, or tune your fork for hard charging without adding harshness. TopHat's dual air-spring system allows for lower initial operating pressure for a supple feel off the top,  while the secondary spring provides tunable support and bottom out resistance. Easy setup with the Quickstart Guide and pressure calculator will have you dialed in and riding in as little as 5 minutes.

Want to maximize your fork's performance? Advanced tuning of individual chamber ratios, piston height, and additional volume reducers provides everything you need to dial in a truly custom ride for any terrain, weight, or riding style.

Air or coil? TopHat combines the advantages of both.

Designed for initial pressures 10-15 psi lower than the stock air spring at equal sag, TopHat delivers superior small bump compliance and traction. Where a traditional fork this responsive off-the-top would wallow in the mid-stroke, the secondary air chamber builds gradual support to maintain a stable ride height before ramping up smoothy to prevent bottoming. With exceptional ride characteristics and unmatched adjustability, TopHat isn't more coil like. It's better.

How does TopHat work?

The TopHat advantage:

Coil springs are supple off the top but lack support on large impacts, tuning for more bottom out control means compromising comfort and grip. Air springs can offer great support and progression but are overly harsh at the beginning, while tuning them for more traction and comfort comes at the expense of support. TopHat's dual chamber system allows you have the best of both systems. Soft off the top, support where you need it, and plenty of tunable bottom out control at the end.

Custom tuning made easy:

TopHat is simple to setup in just a couple of minutes. Infinite fine tuning with just an air pump means you'll never have to mess around with volume spacers again. Just set your pressure and let TopHat do the rest.

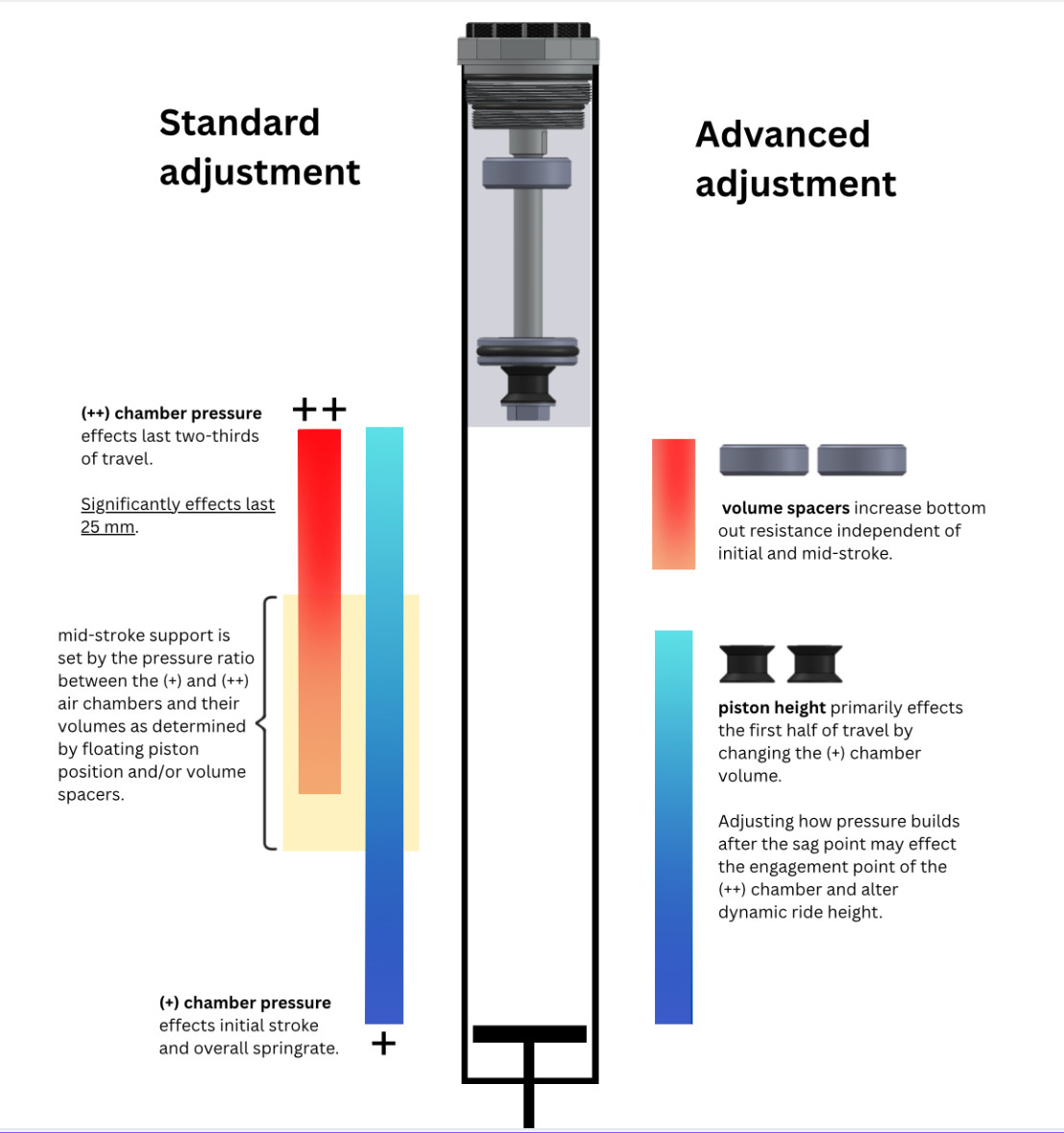

For riders seeking the ultimate in custom tuning, TopHat also includes the option for advanced adjustment of chamber ratios, piston height, and secondary stage volume.

Whether you prefer to set-and-forget or dive straight down the rabbit hole the detailed, graphic based tuning guide makes it easy.

Explore tuning guides

Stability and control

Perfect balance front and rear.

The key to a great handling bike is balanced suspension. While frame designers employ a range of kinematics to control the spring curve of the shock and ride characteristics at the rear wheel, it can a be a challenge tuning the fork to match. TopHat's design gives you total control to tune your fork's spring curve exactly how you want for any bike you ride.

TRUlY INDEPENDENT ADJUSTMENT

Tune without compromise.

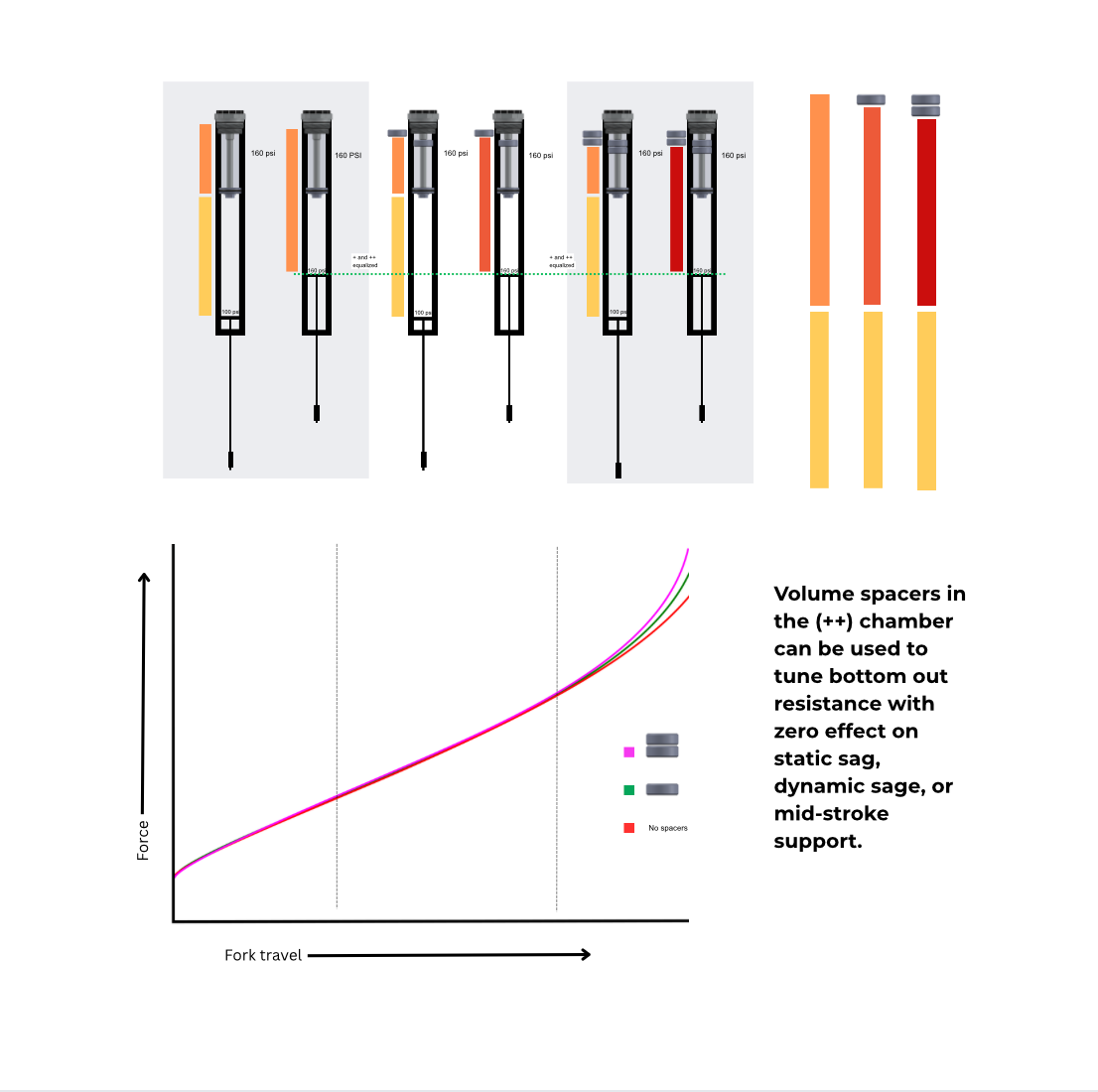

In traditional single-stage air springs, any adjustment to one aspect effects the entire stroke and forces a compromise in suspension performance. With TopHat, adjustments to the end of the stroke are isolated from the first part of travel so they won't change sag or initial sensitivity off the top. The unique design also incorporates volume spacers for extra fine tuning the last 20-30mm of travel, but with zero effect on initial grip, comfort, or dynamic ride height.

Precision manufacturing

Attention to detail means less is more.

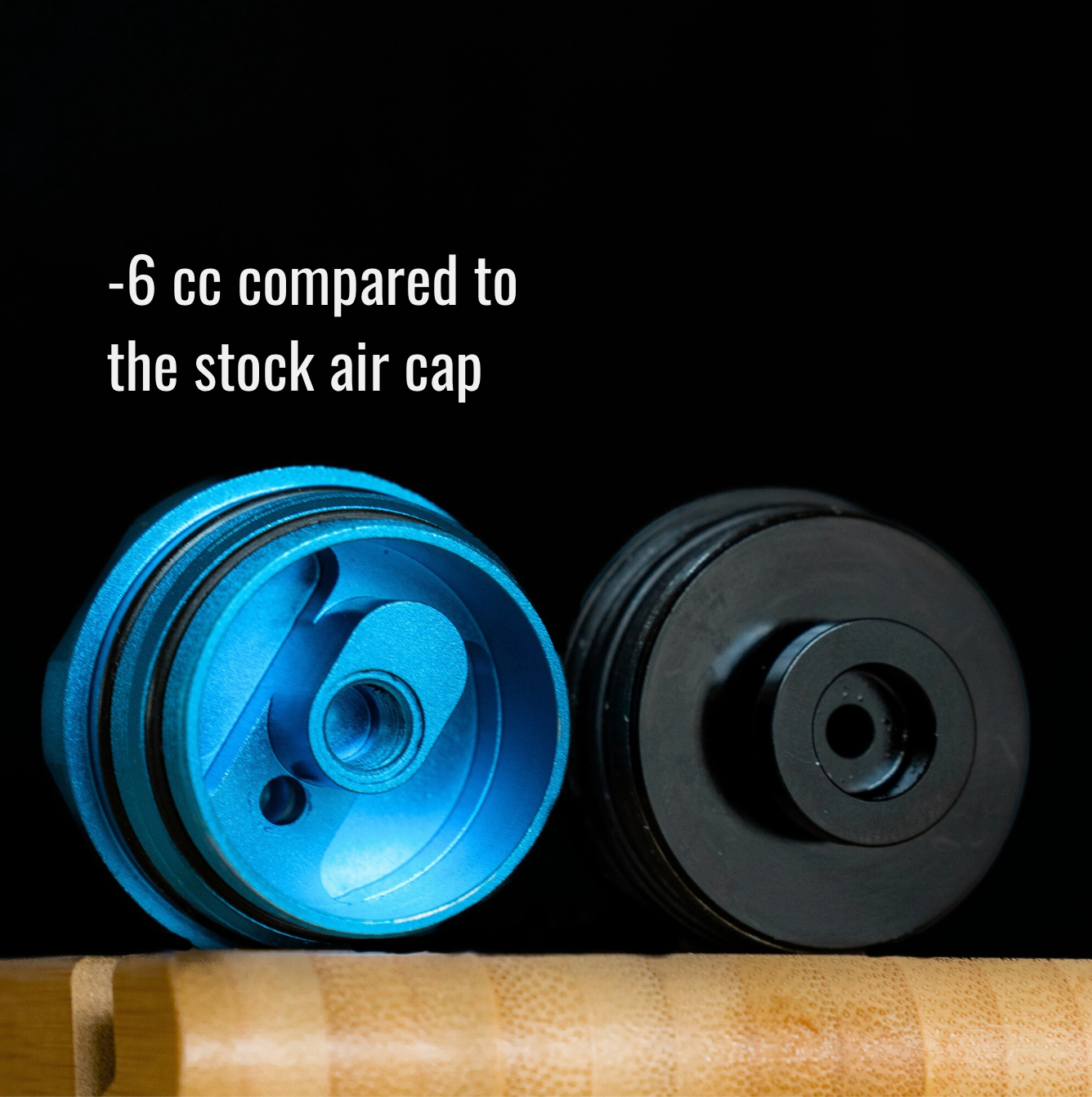

Similar aftermarket products use a one piece mono-tube design for ease of lower cost manufacturing at the expense of performance. Taking up as much as 30cc of extra space inside the fork, they can make the spring overly progressive by default. By utilizing a more precise modular design and removing as much material as possible during the machining process, TopHat remains volume neutral. The benefit is lower base-line progression for lighter riders and long travel forks, a broader adjustment range for all users, and reduced sensitivity to small changes in pressure and temperature.

UPGRADE WITOUT WORRY

One TopHat covers all travel options.

Because it's not designed around a rigid pressure ratio or theoretical spring curve, TopHat isn't limited to a single travel setting. The available adjustment range combined with multiple internal tuning options assures maximum performance regardless of your travel preference. Everything you need is included, with no hidden costs or additional parts required. Ever.

INSTALLS IN MINUTES

No special tools or disassembly required.

Simply unthread your old fork cap and install TopHat in its place. Inflate to the suggested staring pressure using the Quick Start guide and you'll be riding in as little as 5 minutes. Fine tuning can be done in seconds and basic service completed in the time it takes to swap a traditional volume spacer.

Though not required, a custom top cap socket is included for your convenience.

ATTENTION TO THE DETAILS

User friendly service and adjustment.

Designed by riders and suspension tuners for a consumer focused and user friendly experience both on the trail and in the workshop. TopHat is easily serviced and fully rebuildable in minutes without a vice, shaft clamps, or special tools. Redundant interfaces on critical components means an accidentally stripped bolt doesn't result in a costly replacement or missed ride days. And with no external parts to break you'll never have to worry about TopHap being damaged in a crash.

FUTURE PROOF COMPATIBILITY

Modular by design.

TopHat's unique modular design isn't just about performance and ease of adjustability, it's upgradable and replaceable. As future fork models evolve, simply keep the core TopHat components you already have and replace only what you need to stay up-to-date.
