Quickstart Guide

  • Enter your current fork pressure into the calculator below.
  • Review the inflation instructions.
  • Go ride!

Inflation procedure

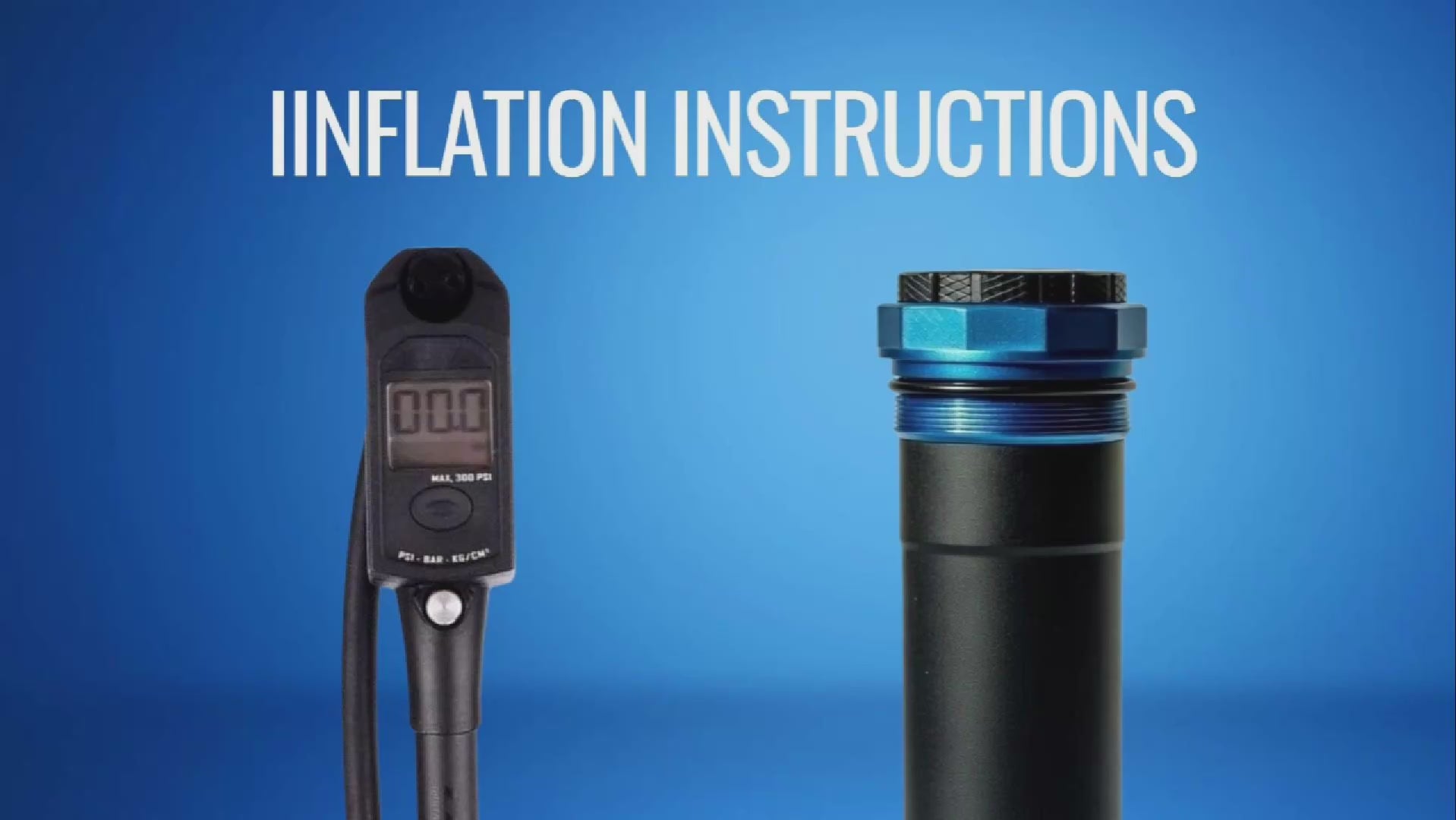

TopHat's dual air chambers must be inflated in a specific order. Consult the instructions under the Quickstart Pressure Calculator or watch the video below.

Find your optimal pressure

Enter your current or manufacturer recommended pressure into the calculator below.

Quickstart Pressure Calculator

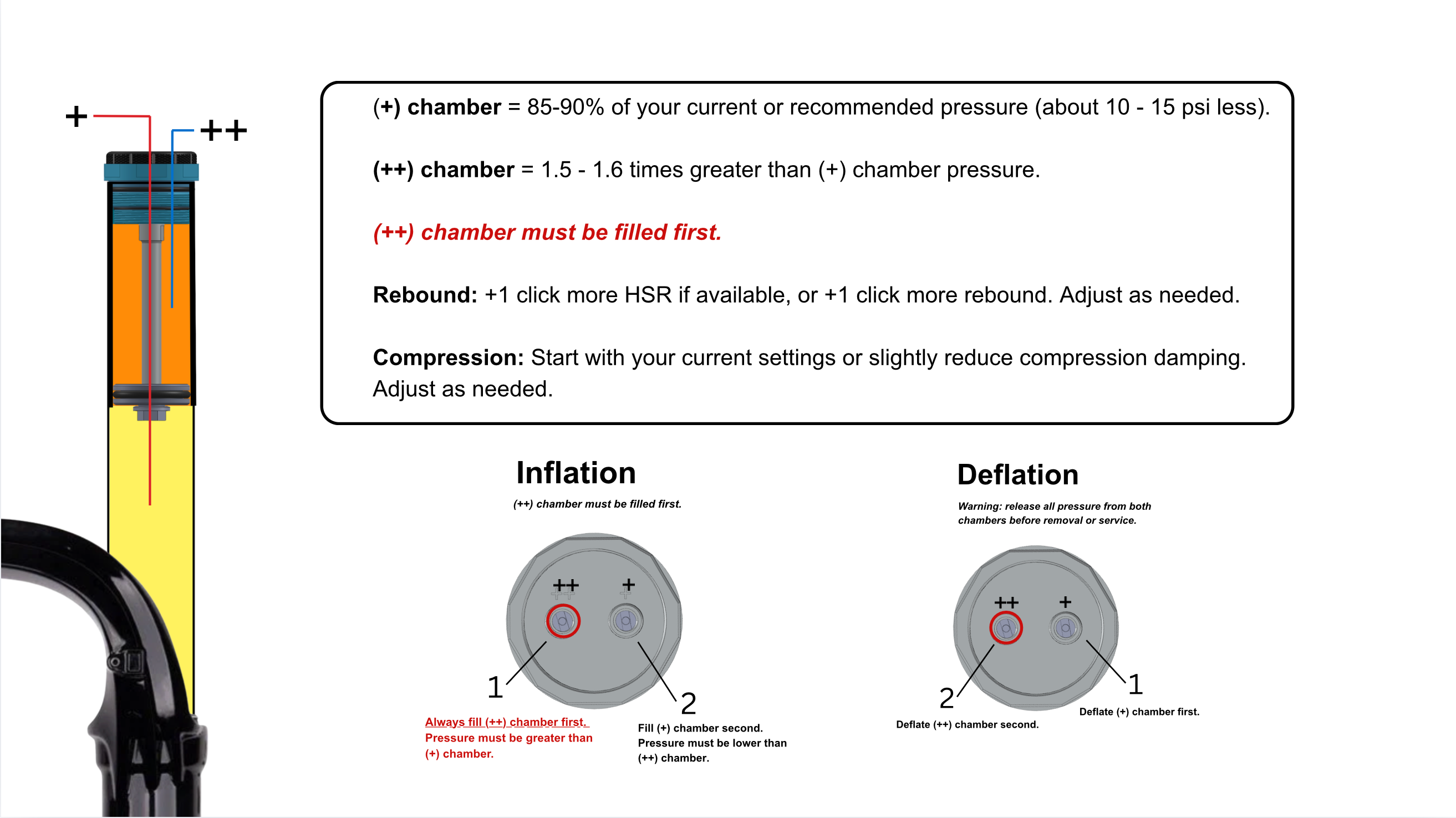

Always fill the (++) chamber first

Less progressive (+):(++)
More progressive (+):(++)

Recommended settings

Intended for initial testing. Adjust as needed based on personal preference, riding style, and terrain.

Fine tune air pressure and ratio

One example of a tuning protocol starting with a (+) : (++) chamber ratio of 1 : 1.5

Independently tune air pressure

Making changes to the pressure in one chamber does not effect pressure in the other chamber. As long as the (++) remains at a higher pressure both chambers can be adjusted independently.

Tuning Guide

For additional adjustments and support consult the TopHat Tuning Guide.

Download here
